I dig in an old toolbox at my parents’ place. I found this door hinge.
I took one of the most “intricate objects” from the box. I actually liked it for its mechanism.

2014-09-18 19.05.49
2014-09-18 19.06.03

So, I decided that it will be my sketching challenge of the day!

TIP 29 basics will become instinct

Train yourself at drawing things in different angles.
Remember to apply the fundamental’s rules of perspective, and simplification of shapes.
These two are your best friends.

The more you’ll practice them, the more you’ll follow them by instinct.

truc-theDesignSketchbook

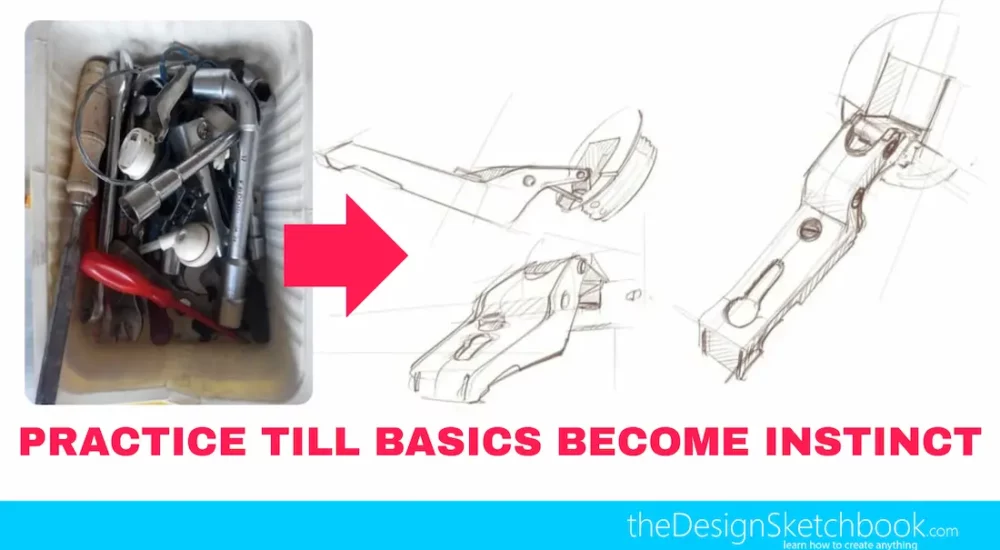

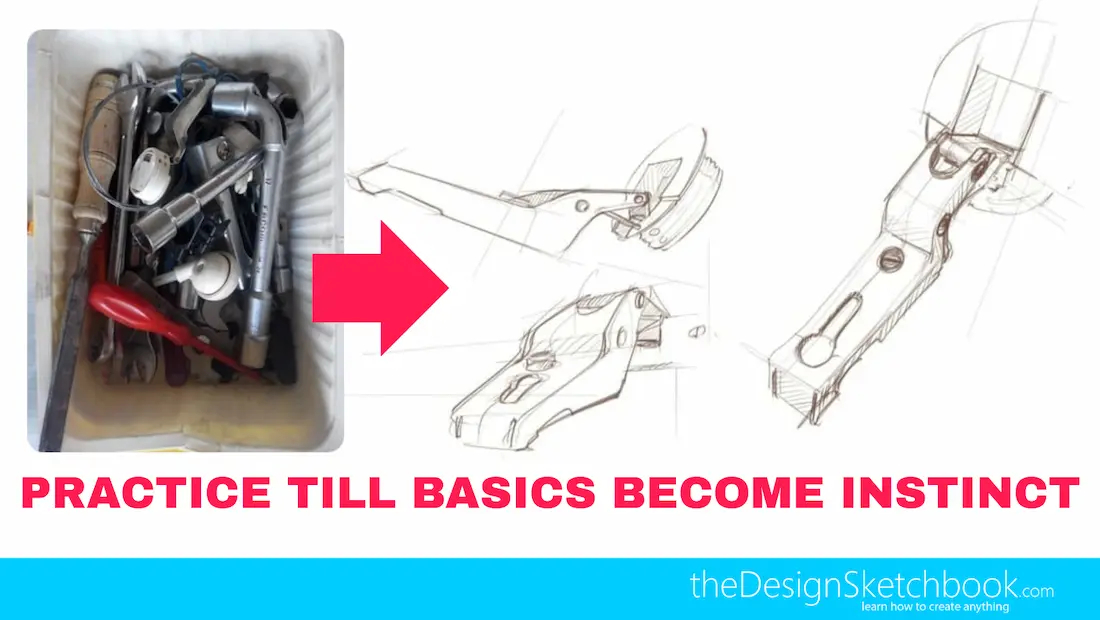

Drawing hinges I found in my tool box

Before drawing the door hinge mechanism, make sure to understand it well first. Identify the pivot axes.

You can leave a comment and see you tomorrow!





3 comments

Your email address will not be published. Required fields are marked *

  • Really really outstanding drawings for mechanical component, is it possible to put up a bit more of these ? and one request if i may, can you put up a tutorial on how to draw tyres and wheels ? they are extremely difficult to draw in 3D

    • Hi Tony, I took note of your request. For a quick help, if you got difficulties to draw tires and wheels, start by drawing a rectangle in perspective (parallelepiped). Include a cylinder inside. It will help you as a good base.

  • excellente idée! C’est marrant on voit bien le designer que tu est, moi (tant que femme aussi) j’aurais pris je ne sais pas une vase ou un truc dans ce genre! Ton dessin rend super bien et en plus avec ta méthode tu verras effectivement mieux cet objet. Bravo
