This tutorial dives into the nuances of using diverging light sources, like projectors, to enhance your sketches.

We saw previously at the How to Draw Cast Shadow using PARALLEL source light (such as the sun).
Today let’s see more about DIVERGING source light (such as 1 or multiple projectors).

The “Diverging source light” would fit better for objects you could hold in your hand for example.


How To Draw Cast Shadow with Diverging source light

How to draw Cast shadows with Diverging source light easily!

1. Draw cast shadow with multiple sources of lights

Cast shadow with 2 projectors
Cast shadow with 2 projectors


Cast shadow with a closer projector to the volume.

Try to draw a few and test a minimum of 5 different sources of light.
Take a pen and let me know how it goes in the comments below!

Note:
Try to draw Cast shadows without using any ruler to trace the straight lines.
It’s a good habit to take from the start.
If needed, you can click here to get a tutorial on how to draw straight lines without a ruler.

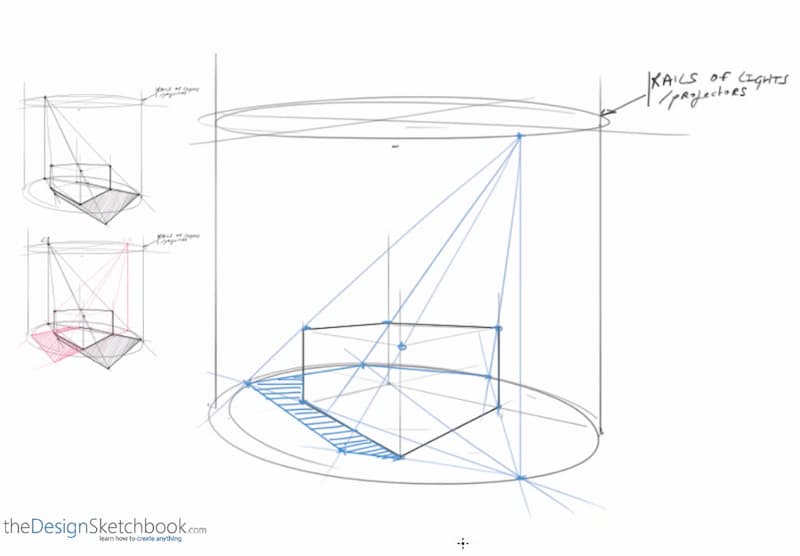

2. Cast shadow with front source light

The blue light come from the front of the cylinder.
The blue light comes from the front of the cylinder.

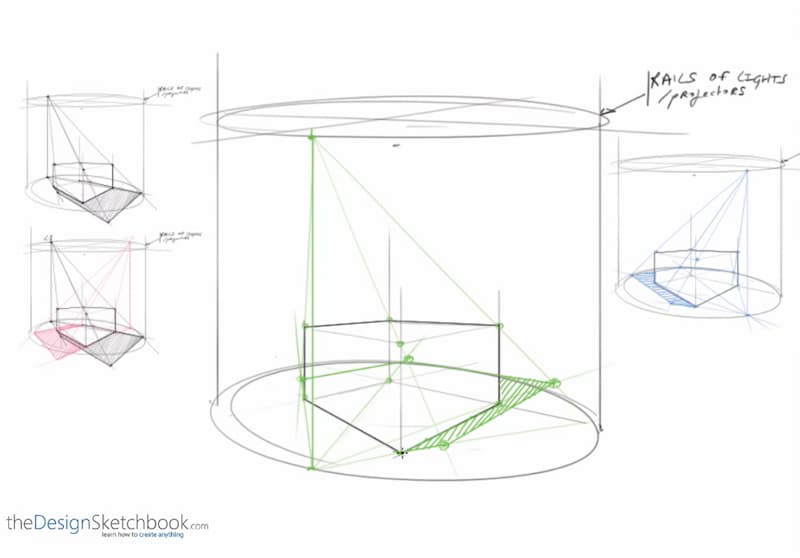

3. Cast shadow with back source light

The green light comes from the front of the cylinder.
The green light comes from the front of the cylinder.

4. Draw infinite possibilities of source lights

Feel free to resize the cylinder with rails to explore an infinity of possibilities for light sources.

The purple light comes from behind
The purple light comes from behind
Try multiple sources of lights
Try multiple sources of lights

Drawing exercise:
